Expert CNC Tube Bending Services for High-Precision Manufacturing
We deliver state-of-the-art Computer Numeric Controlled (CNC) tube bending services that combine precision automation with expert engineering. Our advanced multi-axis CNC tube benders produce complex geometries with exceptional repeatability, making us the preferred partner for aerospace, automotive, medical device, and high-tech manufacturing companies demanding the highest quality standards.
- 10-Axis CNC Precision
- ±0.010″ Tolerance
Why Choose CNC Tube Bending Over Manual Methods
Computer Numeric Controlled (CNC) tube bending represents a revolutionary advancement over traditional manual methods, delivering unprecedented precision, speed, and consistency. By eliminating human error through servo-driven automation and real-time adaptive algorithms, CNC systems achieve tolerances as tight as ±0.010″ with perfect repeatability across production runs of 1 to 10,000+ pieces. Production time is reduced by up to 90% compared to manual bending, while automated processes dramatically lower labor costs and virtually eliminate costly rework. Multi-axis CNC control enables complex 3D geometries impossible with manual methods, and integrated CAD/CAM systems provide instant online quoting with automated manufacturability checks—transforming what once took days into minutes. For manufacturers demanding the highest quality standards, CNC tube bending is no longer optional—it’s essential.
Automated Precision Control
Our multi-axis CNC systems use servo-electric drives and adaptive bending algorithms to achieve precision impossible with manual methods. Real-time monitoring adjusts for material springback automatically.
- 6-axis and 10-axis CNC control
- Real-time adaptive algorithms
- Automatic springback compensation
- CMM verification to ±0.010″
Perfect Repeatability
CNC automation ensures every part matches the first article exactly. Ideal for high-volume production where consistency is critical—from 1 to 10,000+ pieces.
- 100% dimensional consistency
- Programmable bend sequences
- Stored programs for repeat orders
- Zero setup time for reorders
90% Faster Production
Automated CNC bending completes complex multi-bend parts in minutes versus hours with manual methods. Rapid turnaround without sacrificing quality.
- Automated tool changing
- Continuous operation capability
- Minimal operator intervention
- 24-hour prototypes available
Complex 3D Geometries
Multi-axis CNC control enables complex shapes impossible with manual bending—multiple planes, tight radii, and intricate bend sequences all in one setup.
- Multi-plane bending in single setup
- Tight radius capability (1.5X OD)
- CAD/CAM direct programming
- 3D simulation before production
Reduced Labor Costs
Automation dramatically reduces labor requirements and eliminates costly rework. One operator can manage multiple machines simultaneously.
- Minimal operator training required
- Reduced scrap and rework
- Eliminates manual measurement
- Lower cost per part at volume
Fast Quote Response
Submit your CAD files or drawings and receive detailed quotes within 24 hours. Our engineering team reviews each project for manufacturability and provides comprehensive pricing.
- 24-hour quote turnaround
- Expert engineering review
- DFM recommendations included
- No minimum order quantity
CNC Tube Bending Specifications
Our state-of-the-art CNC tube bending facility features advanced multi-axis equipment capable of producing precision bends across an extensive range of tube sizes, materials, and geometries. From small-diameter medical tubing at 0.125″ OD to large industrial pipes up to 4″ OD, our 10-axis all-electric and 6-axis hybrid CNC benders handle wall thicknesses from 0.020″ to 0.250″ with repeatable accuracy of ±0.010″. We process everything from aerospace-grade titanium and stainless steel to aluminum, copper, and carbon steel alloys. With centerline radii as tight as 1.5X tube diameter and multi-plane bending capabilities in a single setup, our equipment eliminates the need for multiple operations while maintaining strict dimensional tolerances. Whether you need a single prototype or production runs exceeding 10,000 pieces, our CNC systems deliver consistent quality with perfect part-to-part repeatability.

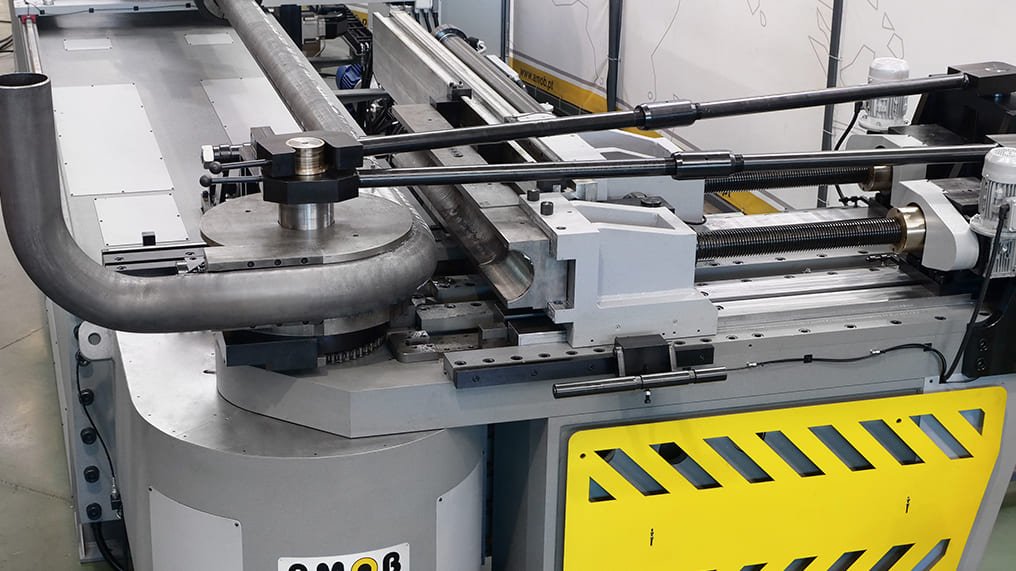

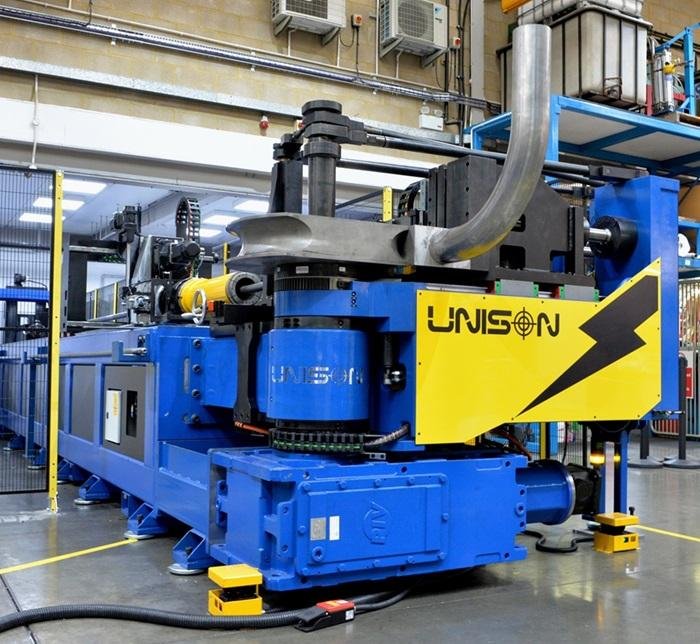

10-Axis All-Electric CNC Bender
State-of-the-art precision for complex geometries
Our flagship all-electric 10-axis CNC tube bender combines servo-driven precision with adaptive bending algorithms. Real-time monitoring systems adjust parameters during the bend cycle to compensate for material variations and springback.
Key Features:
- Automatic mandrel extraction
- Multi-stack bending capability
- Collision detection system
- 3D part simulation

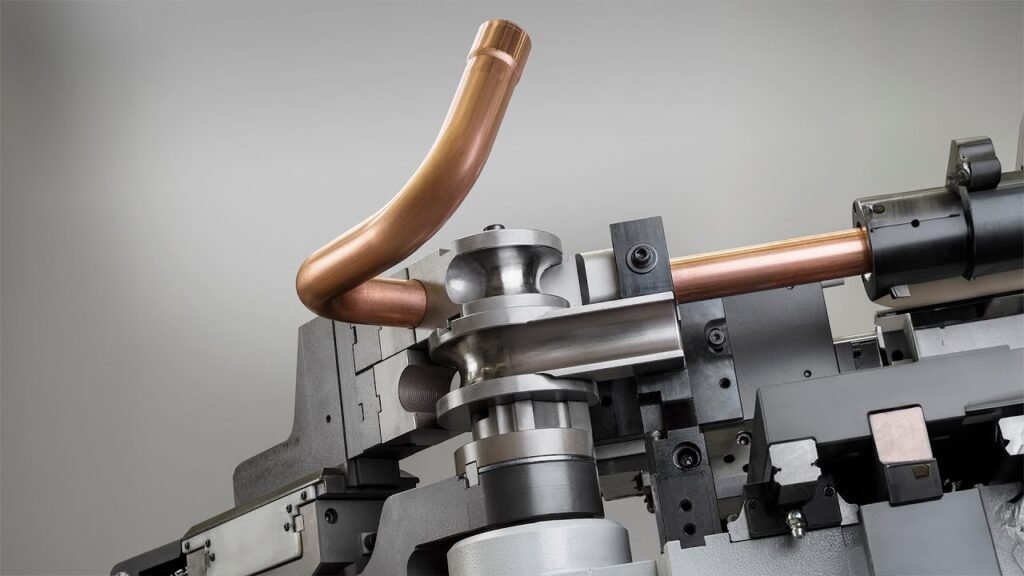

6-Axis Hybrid CNC Bender
Production-optimized for high-volume runs
Our hybrid electric/hydraulic 6-axis CNC system excels at high-volume production with rapid cycle times. Ideal for automotive, furniture, and industrial applications requiring thousands of identical parts.
Optimized For:
- High-volume production (1000+ pieces)
- Automotive exhaust systems
- Furniture frames and components
- Industrial handrails and guards
CNC Tube Bending Profiles & Dimensional Capabilities
| Profile Type | Size Range | Wall Thickness | Min CLR | Typical Applications |
|---|---|---|---|---|
| Round Tube | 0.25″ – 4.00″ OD | .028″ – .250″ | 1.5X OD | Hydraulic lines, exhaust, frames |
| Square Tube | 0.50″ – 2.75″ sq | .049″ – .188″ | 2X width | Structural, furniture, handrails |
| Rectangular Tube | Up to 3″ x 2.5″ | .049″ – .188″ | 2X major axis | Architectural, chassis, supports |
| Oval Tube | Up to 4″ major OD | .035″ – .120″ | 2.5X major | Decorative, furniture, automotive |

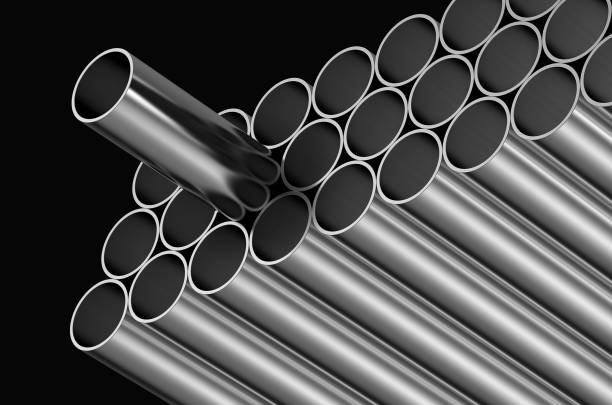

CNC-Compatible Materials & Specifications
Our CNC tube bending capabilities extend across a comprehensive range of ferrous and non-ferrous materials, each requiring specialized tooling, mandrels, and bending parameters. From aerospace-grade titanium alloys (Ti-3Al-2.5V, Grade 9) demanding precise temperature control and specialized lubrication, to high-strength stainless steels (304, 316, 321) used in medical and food processing applications, our equipment handles the most challenging materials with consistent results. Aluminum alloys (6061-T6, 5052, 2024) benefit from our all-electric CNC systems’ precise pressure control, preventing springback and surface marking. We also process copper and brass for HVAC applications, carbon steel for structural components, and exotic alloys like Inconel for high-temperature environments. Each material family requires different minimum centerline radii, wall thickness ratios, and mandrel configurations—our engineering team optimizes these parameters for your specific application to achieve the tightest possible bends without compromising tube integrity.
| Material | Grades/Alloys | Max OD | Min CLR | Key Properties |
|---|---|---|---|---|
| Stainless Steel | 304, 316, 321, 347 | 2.000″ | 1.5X OD | Corrosion resistant, food/medical grade |
| Aluminum | 6061-T6, 3003, 5052 | 2.000″ | 2X OD | Lightweight, aerospace applications |
| Carbon Steel | A513, 1010, 1020, DOM | 4.000″ | 2X OD | High strength, cost-effective |
| Chromoly (4130) | Seamless, Normalized | 2.000″ | 1.5X OD | High strength-to-weight, racing/aircraft |
| Titanium | Grade 2, Grade 5 (6Al-4V) | 1.500″ | 2.5X OD | Extreme performance, aerospace |
| Inconel | 600, 625, 718 | 1.500″ | 2.5X OD | High-temp, corrosion resistant |
| Copper & Brass | C110, C122, C260, C360 | 2.000″ | 2X OD | Excellent formability, plumbing |
CNC Tube Bending Applications Across Industries
CNC tube bending has become indispensable across industries where precision, repeatability, and material integrity are critical to product performance and safety. From aerospace hydraulic lines operating at 3,000+ PSI to medical device components requiring biocompatible materials and sterile processing, our multi-axis CNC systems deliver the exacting tolerances these applications demand. Automotive manufacturers rely on our high-volume production capabilities for exhaust systems, roll cages, and chassis components, while architectural fabricators specify our services for complex curved railings and structural elements. The furniture industry benefits from our ability to produce thousands of identical chair frames and table bases with perfect consistency, and industrial equipment manufacturers depend on our expertise for hydraulic manifolds, heat exchangers, and process piping. Each industry presents unique challenges—from AS9100 aerospace certifications to FDA medical device compliance—and our CNC automation ensures we meet these stringent requirements while maintaining competitive lead times and pricing.
Automated Precision Control
AS9100-compliant CNC tube bending for critical aircraft systems. Titanium and Inconel capabilities for high-performance applications with full material traceability.
- Hydraulic and fuel system lines
- Environmental control ducting
- Structural tubing and supports
- Leak-tested pneumatic systems
Automotive & Racing
High-volume CNC production for OEM and aftermarket. Chromoly roll cages, performance exhaust systems, and chassis components with perfect repeatability.
- Mandrel-bent exhaust systems
- NHRA/FIA certified roll cages
- Suspension and chassis tubing
- Cooling system pipes and manifolds
Medical & Pharmaceutical
Ultra-clean CNC bending for high-purity systems. 316L stainless with electropolished finishes and full documentation for FDA compliance.
- Sterile fluid delivery systems
- Pharmaceutical processing tubing
- Medical device frames and supports
- Clean room compatible components
Construction & Architecture
Structural tube bending for commercial and residential projects. Square and rectangular profiles for handrails, canopies, and architectural features.
- ADA-compliant handrails and guardrails
- Structural support beams and trusses
- Canopy and awning frameworks
- Custom architectural elements
Energy & Renewables
CNC-bent components for solar, wind, and traditional energy infrastructure. Large-diameter capabilities for industrial applications.
- Solar panel tracking system frames
- Wind turbine structural components
- Heat exchanger tubing
- Process piping and manifolds
Robotics & Automation
Precision tube bending for robotic arms, automated guided vehicles, and manufacturing equipment. Complex 3D geometries with tight tolerances.
- Robotic arm structural members
- AGV and AMR chassis components
- Conveyor system frameworks
- Machine guards and safety enclosures
Ready to Experience CNC Precision?
Upload your CAD files now for fast quote response and expert manufacturability analysis. No account required—get answers in minutes, not days.

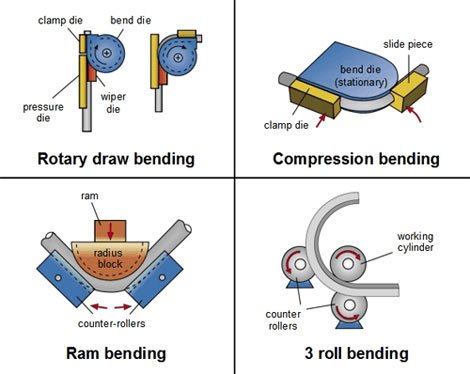

How CNC Tube Bending Works
The CNC Bending Process
Upload STEP, DXF, or IGES files. Our CAM software automatically converts 3D geometry into CNC machine code with collision detection and bend sequence optimization.
CNC system selects tooling, positions mandrel, and configures bend dies based on material properties and part geometry. Springback compensation calculated automatically.
Servo motors execute programmed bend sequence with real-time monitoring. Adaptive algorithms adjust force and angle during the bend cycle to maintain accuracy.
Optical sensors verify bend angles in real-time. First article undergoes CMM inspection before production run begins. Statistical process control ensures consistency.
Once approved, CNC system produces parts continuously with minimal operator intervention. Programs stored for quick reorders with minimal setup time.

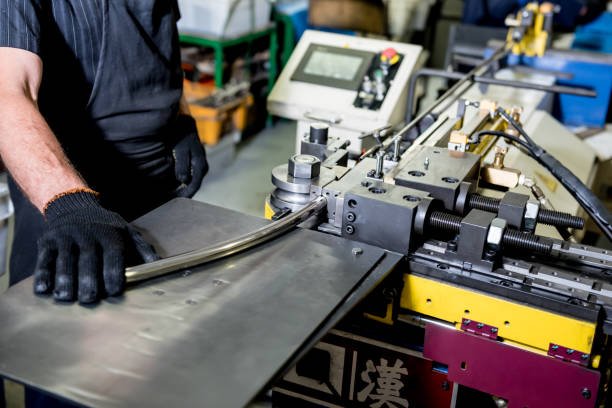

CNC Tube Bending vs Manual Tube Bending: Complete Comparison
Why Choose Our CNC Tube Bending Services
In a competitive manufacturing landscape where precision tube bending suppliers abound, choosing the right partner requires evaluating more than just equipment capabilities—it demands assessing the complete value proposition of technical expertise, quality systems, delivery reliability, and customer support. Our CNC tube bending services distinguish themselves through a combination of state-of-the-art 10-axis automation, ISO 9001:2015 certified quality management systems, and a team of engineers with over 20 years of specialized tube forming experience. We’ve invested heavily in redundant equipment capacity to ensure on-time delivery even during peak demand periods, and our in-house tooling department can design and fabricate custom mandrels and dies within days rather than weeks. Unlike competitors who outsource secondary operations, we provide complete turnkey solutions including laser cutting, end forming, welding, and finishing—all under one roof with single-source accountability. Our commitment extends beyond simply bending tubes to specification; we partner with customers from initial design consultation through production, offering DFM feedback, prototyping support, and ongoing process optimization to reduce costs and improve manufacturability.
Latest CNC Technology
We invest continuously in state-of-the-art equipment. Our 10-axis all-electric benders represent the pinnacle of tube forming technology with capabilities unmatched by older hydraulic systems.
Our quality management system meets aerospace industry standards. Full traceability, material certifications, and comprehensive documentation for every order.
Fast Quote Response
Upload CAD files and receive detailed quotes within 24 hours. Our engineering team provides comprehensive pricing with DFM recommendations.
Complete Integration
Combine CNC bending with laser tube cutting, end forming, welding, and finishing—all under one roof. Eliminate coordination headaches and reduce lead times.
Expert Engineering Support
Our team includes degreed engineers and certified technicians with decades of combined experience. We provide DFM consultation to optimize your designs for CNC production.
No Minimum Order Quantity
From single prototypes to production runs of 10,000+ pieces, we handle all volumes with the same precision and attention to detail. Competitive pricing at every quantity.
Our CNC Tube Bending Process
Getting precision-bent tubes from concept to completion shouldn’t be complicated or time-consuming. Our streamlined CNC tube bending process eliminates the friction points that plague traditional manufacturing workflows—long quote turnarounds, multiple revision cycles, unclear communication, and unpredictable lead times. We’ve engineered a five-step process that combines digital automation with human engineering expertise to deliver parts faster, with fewer errors, and at competitive pricing. From the moment you upload your CAD files, our system and team work in parallel: automated DFM analysis flags potential manufacturing issues while our engineers review your specifications and prepare detailed quotes. Once approved, your project moves seamlessly through prototyping (if needed), production setup with custom tooling, high-volume CNC bending, and rigorous quality inspection before shipping. Throughout the entire process, you’ll have direct access to your dedicated project manager who provides real-time updates, answers technical questions, and ensures your parts meet specification and arrive on schedule. This transparent, collaborative approach has helped hundreds of customers bring products to market faster while reducing development costs and eliminating supply chain headaches.
Submit your CAD files for expert review. Our engineering team analyzes geometry, checks manufacturability, and provides detailed pricing with lead time estimates within 24 hours.
- Drag-and-drop file upload
- Automatic DFM analysis
- Real-time pricing calculator
- Material and finish selection
Our engineers review your design and program the CNC machine. CAM software generates optimized bend sequences with collision avoidance and springback compensation.
- DFM optimization suggestions
- CNC program generation
- 3D simulation verification
- Tooling selection and setup

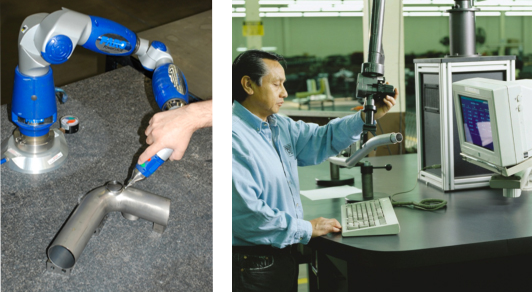

CNC system produces first article with full CMM inspection. First Article Inspection Report (FAIR) provided for your approval before production begins.
- CMM dimensional verification
- FAIR documentation
- Material certifications
- Revisions if needed
After approval, CNC machines produce your parts with perfect repeatability. Real-time monitoring ensures every piece matches the first article exactly.
- Lights-out manufacturing capability
- In-process quality monitoring
- Statistical process control
- Real-time production updates

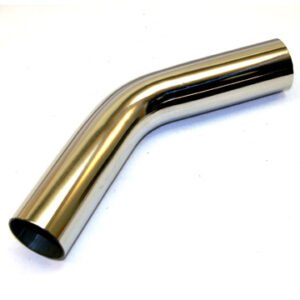

100% final inspection with complete documentation package. Parts carefully packaged and shipped on schedule with full traceability records.
- 100% dimensional inspection
- Complete documentation package
- Material certifications included
- Secure packaging and shipping
Client Testimonial
SEE WHAT OUR CUSTOMERS SAY ABOUT US?
Real Feedback, Real Results: Hear directly from our clients about the exceptional quality and service we provide with every project we deliver.
Frequently Asked Questions
Common questions about our CNC tube bending services and capabilities.
We accept all standard CAD formats including STEP, IGES, DXF, DWG, SLDPRT, CATPART, IPT, and more. Our engineering team can review 3D solid models as well as 2D drawings. If you don’t have CAD files, we can work from PDF drawings, photos of existing parts, or even hand sketches to create models for your approval.
CNC tube bending uses computer-controlled servo motors and multi-axis positioning for precision impossible with manual methods. Key advantages include: ±0.010″ tolerance vs ±0.030″ manual, 90% faster production, perfect repeatability for high-volume runs, ability to create complex 3D geometries in a single setup, and automatic springback compensation. CNC also eliminates human error and reduces scrap rates to near zero.
With mandrel bending on our CNC equipment, we can achieve centerline radii as tight as 1.5X the tube outer diameter for most materials. For example, a 1″ OD tube can be bent to a 1.5″ CLR. Tighter radii may be possible depending on material, wall thickness, and application. Our engineering team will review your design and provide feedback on any bend radii that may need adjustment.
No, we have no minimum order quantity. Our CNC automation makes even single-piece prototypes economically viable. Whether you need 1 part or 10,000, we provide the same precision and quality. Pricing becomes more competitive at higher volumes due to economies of scale, but we’re happy to quote any quantity.
We provide quotes within 24 hours when you upload CAD files through our portal. Our engineering team analyzes geometry, checks manufacturability, and provides detailed pricing. Rush quotes are available upon request for urgent projects.
Our standard tolerances are ±0.010″ for linear dimensions and ±0.5° for bend angles. With additional inspection and process control, we can achieve tighter tolerances down to ±0.005″ for critical dimensions. All first articles undergo CMM inspection to verify conformance before production begins.
Yes! We offer integrated CNC tube bending and laser cutting services. Our laser can cut precise holes, slots, fish-mouth profiles, and complex contours in bent tubes. This eliminates the need for secondary drilling operations and provides superior accuracy. Note that cutouts must be at least 2 tube diameters away from bend regions to avoid deformation.
We bend a wide range of materials including stainless steel (304, 316, 321), aluminum (6061, 3003, 5052), carbon steel (A513, DOM, 1010, 1020), chromoly 4130, titanium (Grade 2, Grade 5), Inconel (600, 625, 718), copper, and brass. Each material has specific formability characteristics that our CNC systems compensate for automatically.
CNC automation ensures perfect repeatability. Once the first article is approved, the CNC program is locked and stored. Every subsequent part is produced using identical machine parameters, tooling positions, and bend sequences. Real-time monitoring systems verify each bend against the program, and statistical process control tracks dimensional consistency throughout the production run.
Absolutely. Our multi-axis CNC benders (6-axis and 10-axis) excel at complex 3D geometries with bends in multiple planes. The CNC system can execute intricate bend sequences that would be impossible with manual methods. We use CAD/CAM software to simulate the entire bending process before production, ensuring collision-free operation and optimal bend sequences.
Yes, we provide complete material certifications and traceability documentation for all materials. This includes mill test reports showing chemical composition and mechanical properties. For aerospace and medical applications, we can provide full material traceability from raw material supplier through finished part.
Prototypes typically ship in 3-5 business days after design approval. Production runs of 100-1000 pieces usually take 1-2 weeks, while larger volumes may require 2-4 weeks depending on complexity and quantity. Rush services are available for urgent needs—we’ve produced prototype parts in as little as 24 hours when required.
Still have questions? Our engineering team is here to help.
